Agrifirst Fan & Pad Polyhouse (FAPPH) is India's premier climate-controlled greenhouse system, delivering precise temperature and humidity management through advanced evaporative cooling technology. Designed with Israeli engineering expertise, this polyhouse maintains optimal growing conditions (18–28°C) even in India's harshest summers when ambient temperatures soar above 45°C.
Why Fan & Pad Polyhouse?
- Precision Temperature Control — Evaporative cooling pads combined with exhaust fans create a 8–12°C temperature drop from ambient, maintaining the ideal 18–28°C range for sensitive crops
- Humidity Management — Automated systems maintain 60–80% relative humidity, critical for crops like rose, gerbera, and orchid that demand consistent moisture levels
- Year-Round Premium Production — Produce export-quality flowers and vegetables 365 days a year, regardless of external weather conditions
- Automated Climate Control — Sensor-driven automation adjusts fan speed, pad water flow, and curtain positions based on real-time temperature and humidity data
- Supreme Crop Quality — Controlled environment produces uniform, blemish-free produce that commands 50–100% price premiums in domestic and export markets
How the Fan & Pad System Works

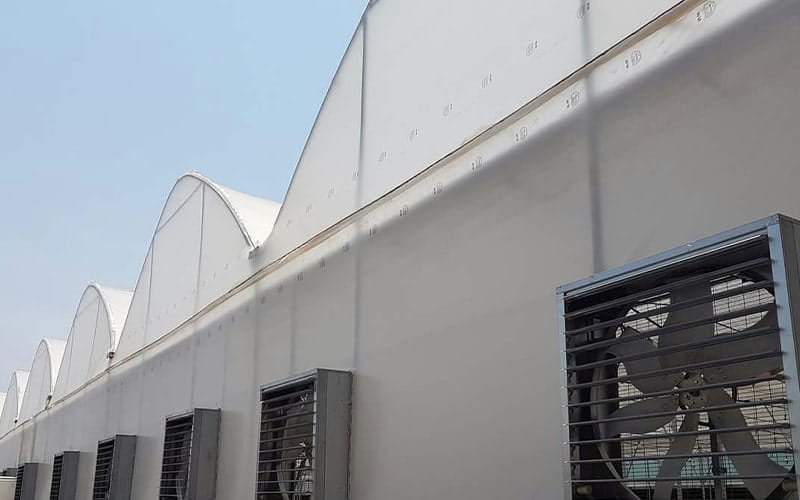

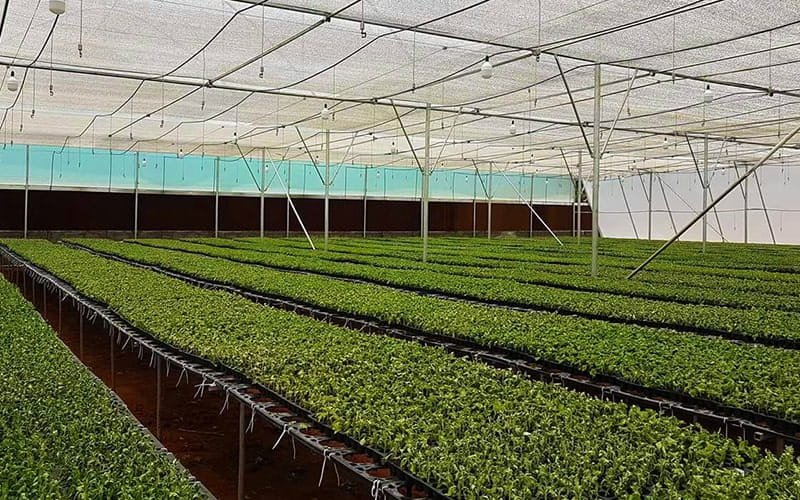

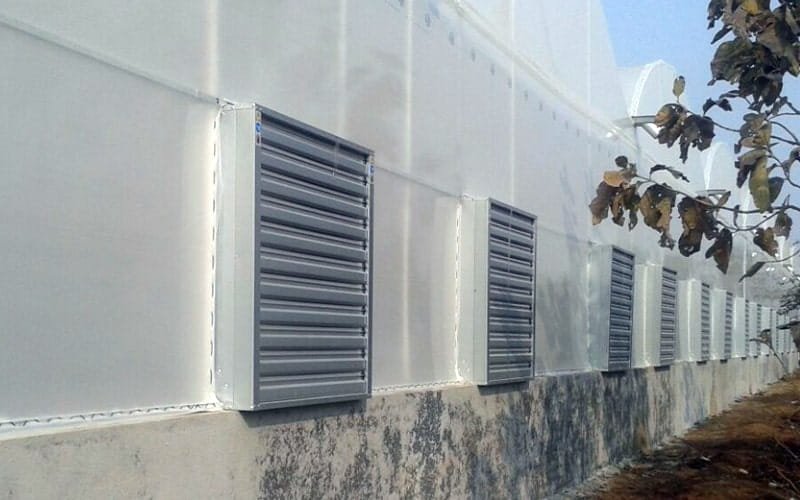

Hot ambient air is pulled through water-saturated cellulose cooling pads on one side of the polyhouse. As air passes through the wet pads, evaporation absorbs heat energy, cooling the air by 8–12°C. Powerful exhaust fans on the opposite wall create negative pressure, drawing this cool, humid air across the entire growing area before exhausting warm air outside. This continuous cycle maintains ideal growing temperatures even in peak summer.
Technical Specifications
| Structure Type | Multi-span gutter-connected, fan & pad cooled |
| Gutter Height | 6.5–7.0 meters |
| Span Width | 8.0 / 9.6 meters |
| Frame Material | Hot-dip galvanized (GI) steel tubular — 550 g/m² zinc coating |
| Wind Load Rating | 120 km/h |
| Cladding | Ginegar 5-layer polyethylene film (200 micron) — anti-drip, anti-dust, UV-stabilized |
| Cooling Pads | 7090 cellulose honeycomb pads — 150mm thick, high-efficiency evaporative cooling |
| Exhaust Fans | 1400mm / 1000mm heavy-duty exhaust fans — direct-drive, corrosion-resistant |
| Temperature Drop | 8–12°C below ambient temperature |
| Maintained Range | 18–28°C (adjustable based on crop requirement) |
| Humidity Control | 60–80% RH (automated) |
| Automation | Sensor-driven temperature & humidity controllers with motorized curtains |
| Gutter System | Anodized aluminium with integrated rainwater drainage |
| Structural Life | 10–15 years |
| Best Suited Crops | Rose, Gerbera, Carnation, Capsicum, Strawberry, Cherry Tomato, Orchid |
| Delivery & Installation | Turnkey by Agrifirst engineering team across India |
Subsidy & Financial Support
Agrifirst Fan & Pad Polyhouse qualifies for 50–65% government subsidy under NHM, MIDH, and state horticulture programs. We provide end-to-end support — from subsidy application and DPR to installation and post-setup certification.
ROI & Farmer Earnings
Commercial rose growers using Agrifirst FAPPH earn ₹15–30 lakhs per acre per year. Capsicum and colored bell pepper farmers achieve ₹10–20 lakhs per acre. The superior crop quality and year-round production capability delivers payback within 2–3 years.
